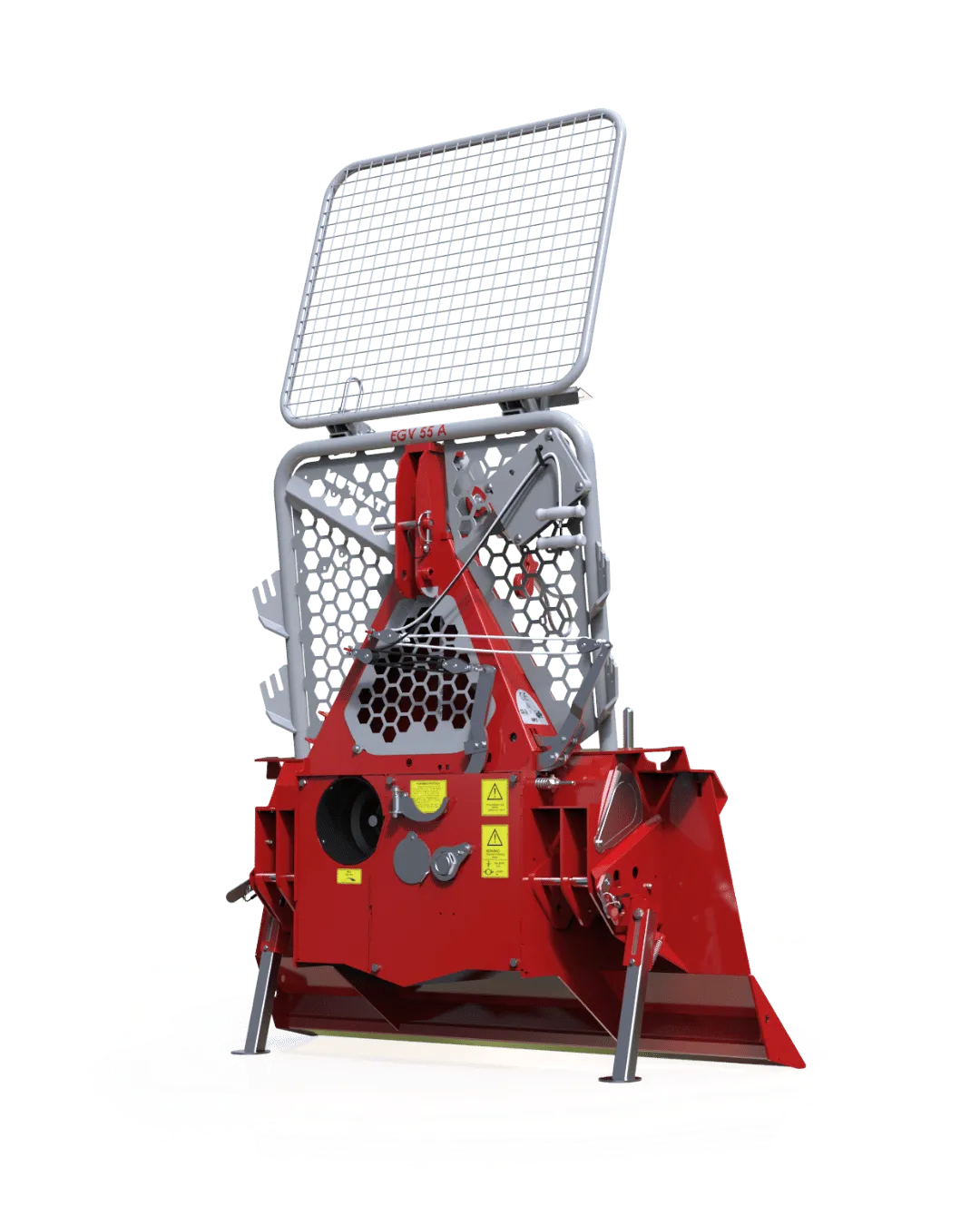

EGV 55 A
SINGLE DRUM LOGGING WINCH
BUILT TO LAST SINCE 1979
CONTACT US FOR PRICING
CONTACT US FOR PRICING
12,250 lbs Pulling Power
35-70hp Tractor Required
15,500 Brake Power
PERFORMANCE
12,250 lbs Pulling Power
15,500 lbs Brake Power
1:8.9 Gear Ratio
21.25'' - 42.5''/s Rope Velocity
SAFETY & CONVENIENCE
35-70 hp Tractor Capacity Required
Standard Bottom Pulley, Differential Brake Band, and Coupling
Weight (Without Wire Rope): 761 lbs
Mounting: I, II
Total Height: 91''
Transport Height: 63''
Width: 60''
Length: 23''
AVAILABLE ACCESSORIES

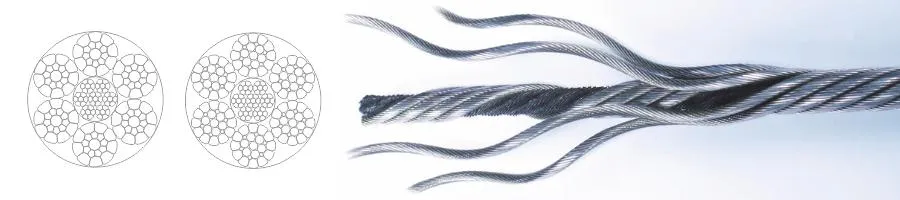

WIRE ROPE:
9 mm, 10 mm, 11 mm
55-85 m

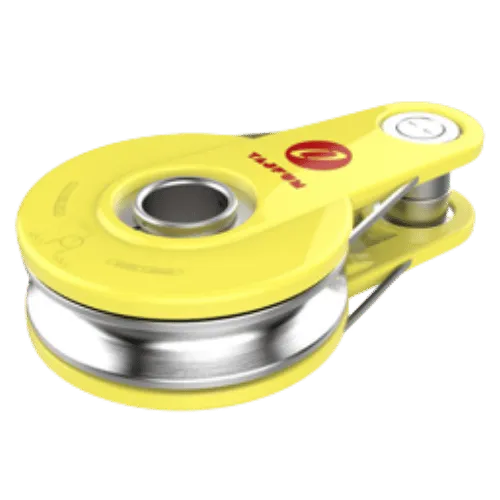

SNATCH BLOCK:
TAJFUN PS 130
PS 130 & 2M LOAD BELT
PS 130 & 3M LOAD BELT
BALL JOINT ROTATING
ø 10- ø 13 mm
BALL JOINT ROTATING
ø 8 – ø 10 mm

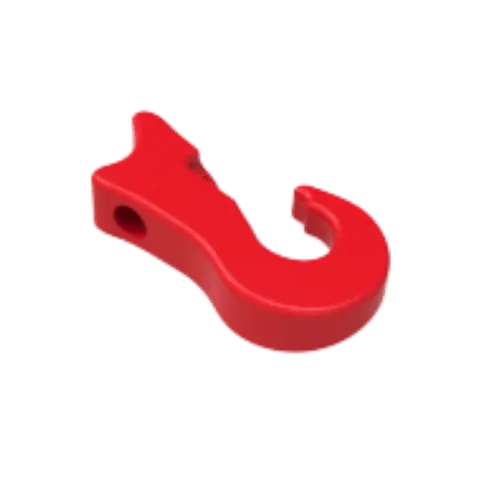

SLIDING HOOK

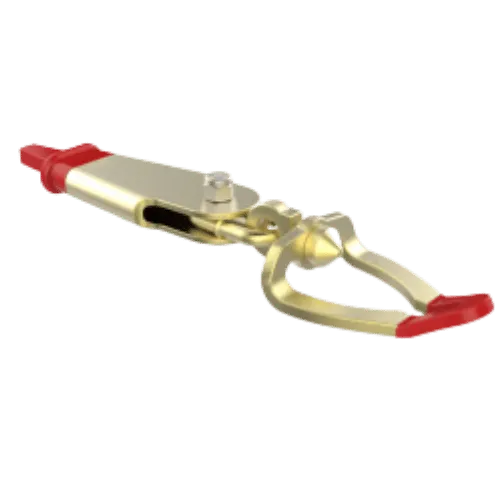

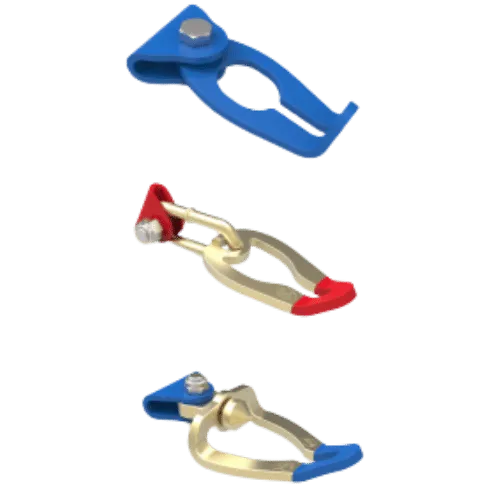

SLIDERS:
SLIDER (10 t)
SLIDER POK
SLIDER ROATING D7-8
HOOK PARALLEL P10
HOOK PARALLEL P7-8
P.T.O SHAFT C LINE-T 2BR+ KK560
