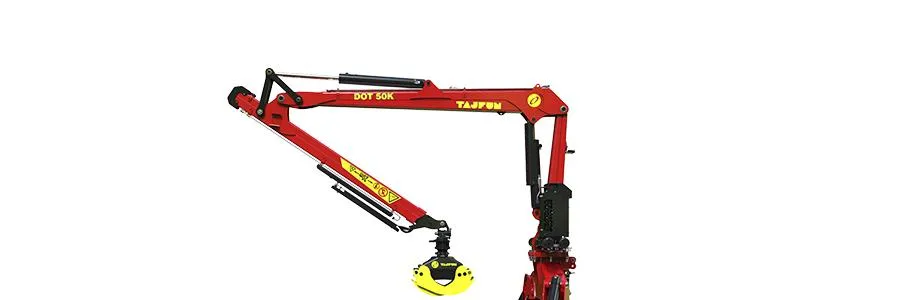

dot 50k
HYDRAULIC TRACTOR CRANE
OFF-ROAD TRACTOR CRANE WITH SELF-CONTAINED HYDRAULIC SYSTEM
CONTACT US FOR PRICING
CONTACT US FOR PRICING
38355 ft.lbs Net Lifting Torque
350॰ Slewing Angle
23.05 ft Max Reach
PERFORMANCE
38355 ft.lbs Net Lifting Torque
48678 ft.lbs Gross Lifting Torque
10.5 gal/min Pump capacity (recommended 300-350 min-1)
18 gal/min Pump capacity (Max. 540 min-1)
3046 psi Working pressure
23.05 ft Max. reach
14014 ft.lbs Net slewing torque
5.5 ft Telescopic boom length
SAFETY & CONVENIENCE
Stabilizer Legs for Uneven Terrain Work
Optional Oil Cooler
Crane without under-frame and control: 1719 lbs
Under-frame: 804 lbs
GO 22 Grapple with rotator (standard grapple): 298 lbs
GO-026X Grapple with rotator (optional grapple): 428 lbs
CONTROL OPTIONS
Electro-proportional control (only guide)
Mechanical control
Mechanical control with 2 electric ON-OFF valves
Electro-proportional control with 2 joysticks
Scanreco radio remote control
KEY COMPONENTS

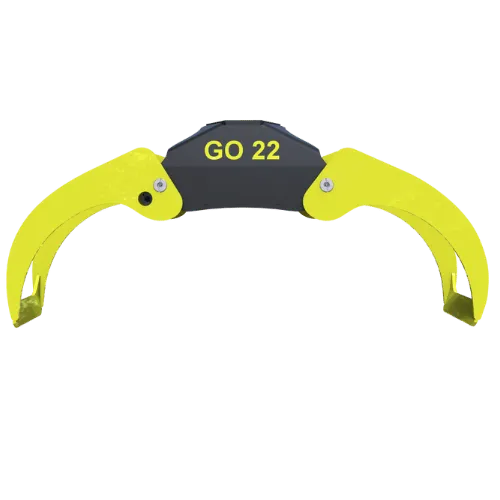

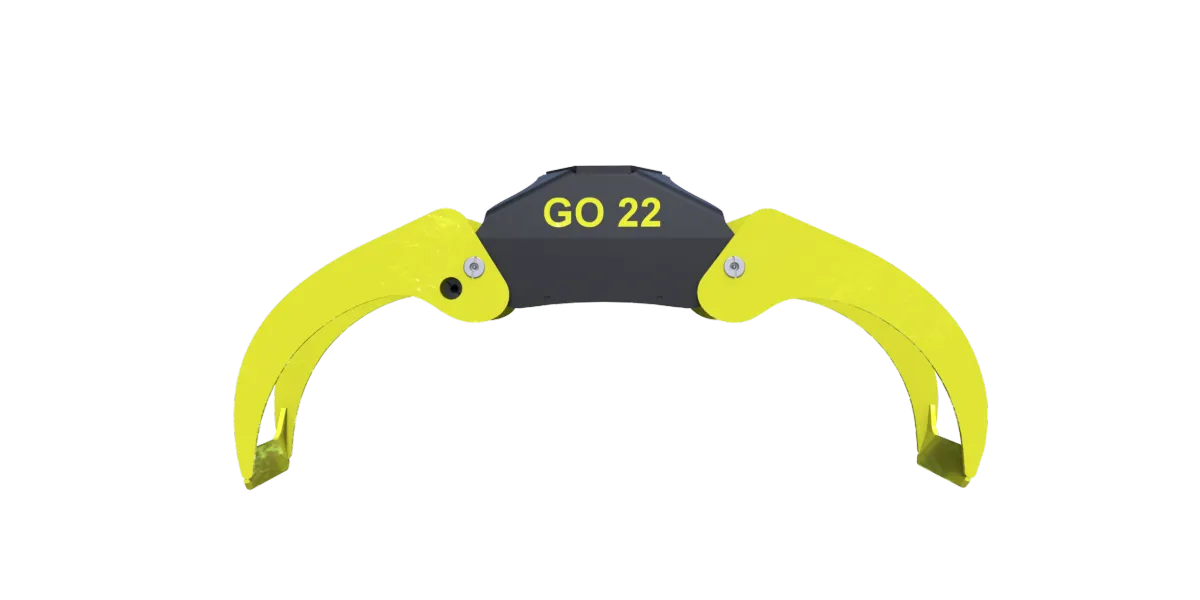

GO 22 GRAPPLE
BASE
OIL COOLER
CONTROL SYSTEMS
MECHANICAL CONTROL WITH 2 ON/OFF VALVES
ELECTRIC CONTROL WITH SCANRECO RADIO REMOTE CONTROL
ELECTRO-PROPORTIONAL CONTROL -

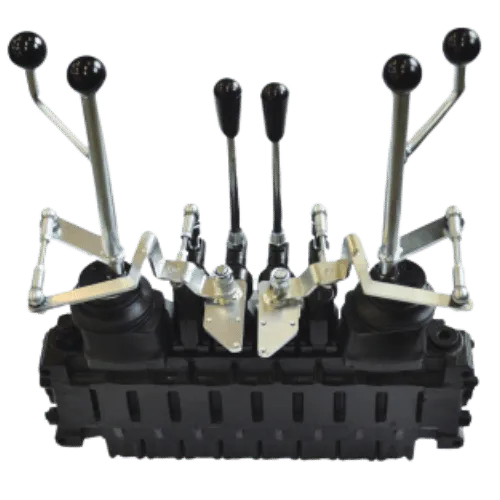

MECHANICAL CONTROL

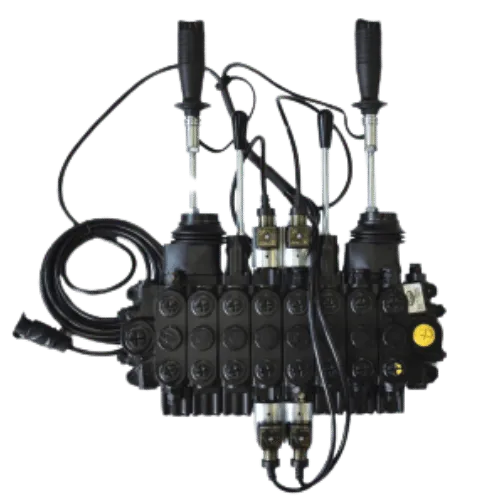

ELECTRIC CONTROL WITH 2 JOYSTICKS
DETAILS
BRAKE
GR463 ROTATOR
FEMALE COUPLING HYDRAULIC PUMP
MALE COUPLING HYDRAULIC PUMP
