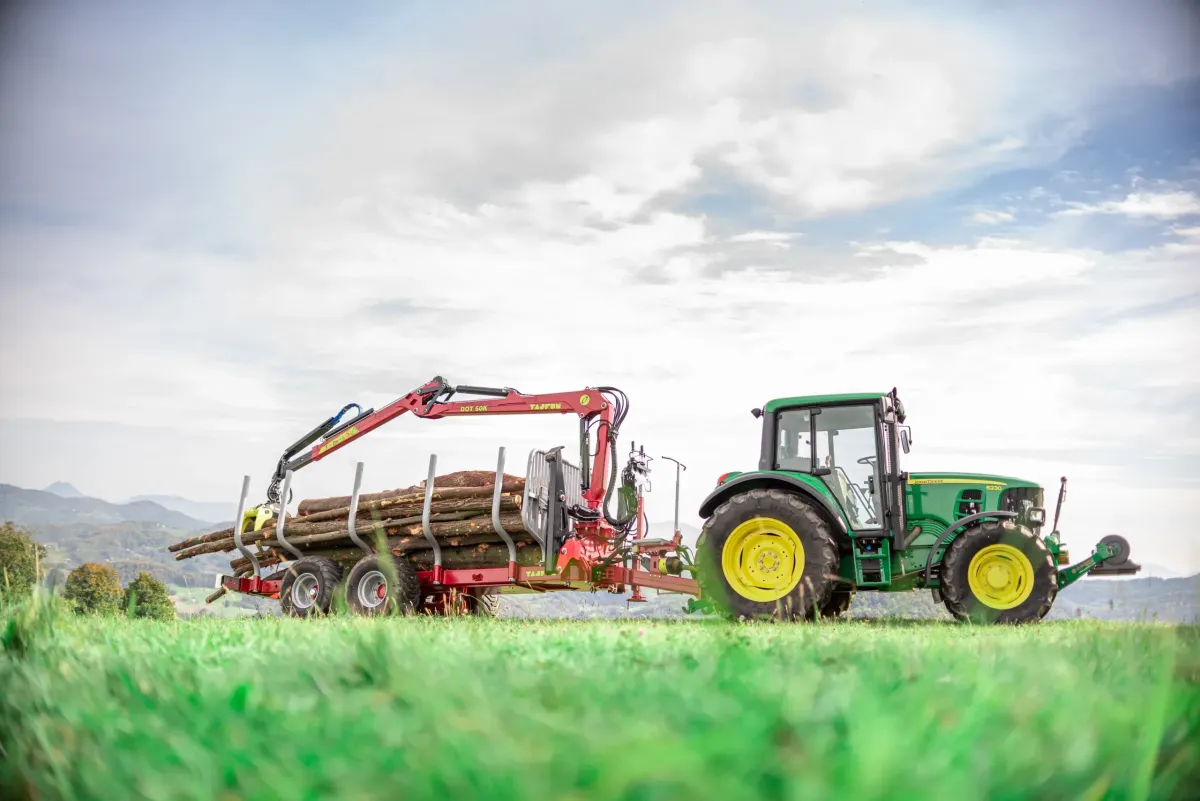

HYDRAULIC TRACTOR CRANE
HYDRAULIC TRACTOR CRANE
CONTACT US FOR PRICING
CONTACT US FOR PRICING
30240 ft.lbs (41 kNm) Net Lifting Torque
390॰ Slewing Angle
23.2 ft Max Reach
PERFORMANCE
30240 ft.lbs (41 kNm) Net Lifting Torque
38353 ft.lbs (52 kNm) Gross Lifting Torque
180 bar / 215 bar Working pressure
23.2 ft ft Max. reach
7375 ft.lbs Net slewing torque
5.9 ft Telescopic boom length
SAFETY & CONVENIENCE
Stabilizer Legs for Uneven Terrain Work
Optional Oil Cooler
Crane without under-frame and control: 1433 lbs
Crane with under-frame, grapple and control: 2425 lbs
GO 22 Grapple with rotator (standard grapple): 298 lbs
GO-026X Grapple with rotator (optional grapple): 428 lbs
CONTROL OPTIONS
Electro-proportional control (only guide)
Mechanical control
Mechanical control with 2 electric ON-OFF valves
Electro-proportional control with 2 joysticks
Scanreco radio remote control
KEY COMPONENTS

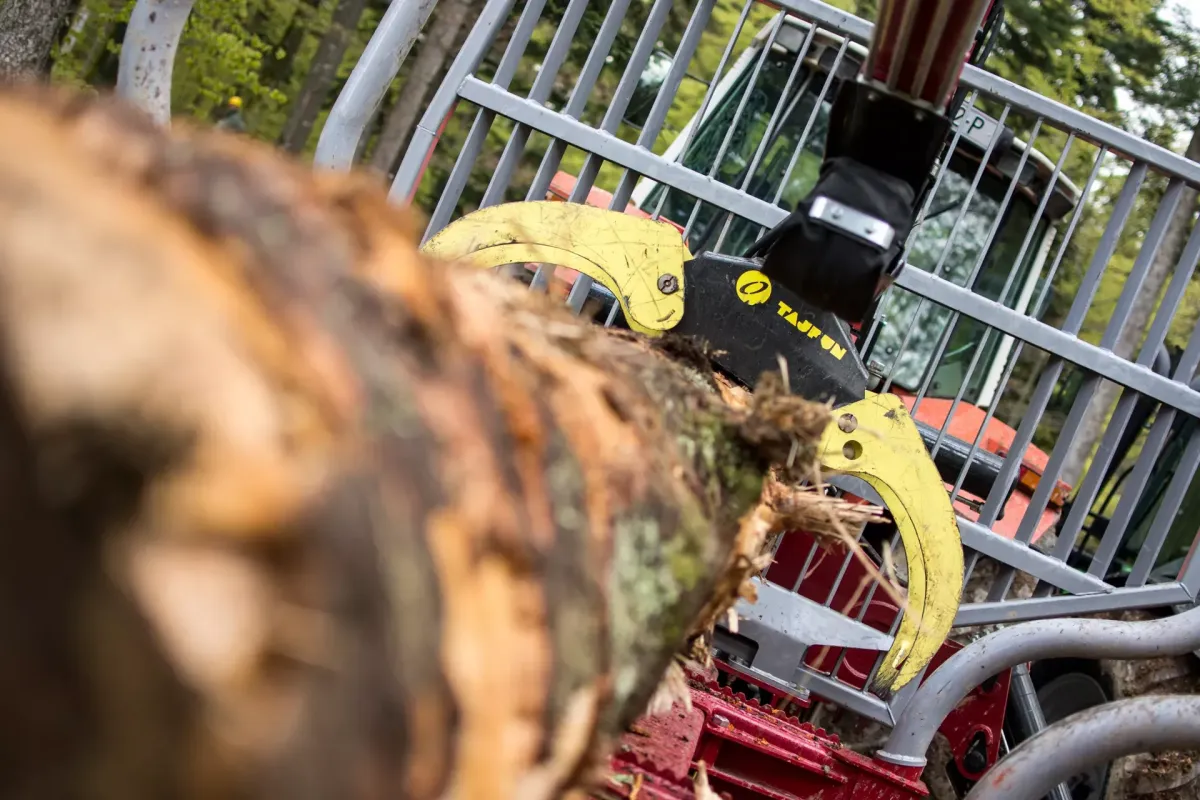

GO 22 GRAPPLE
BASE
OIL COOLER
CONTROL SYSTEMS
MECHANICAL CONTROL WITH 2 ON/OFF VALVES
ELECTRIC CONTROL WITH SCANRECO RADIO REMOTE CONTROL
ELECTRO-PROPORTIONAL CONTROL -
MECHANICAL CONTROL
ELECTRIC CONTROL WITH 2 JOYSTICKS
DETAILS
BRAKE
GR463 ROTATOR
FEMALE COUPLING HYDRAULIC PUMP
MALE COUPLING HYDRAULIC PUMP
